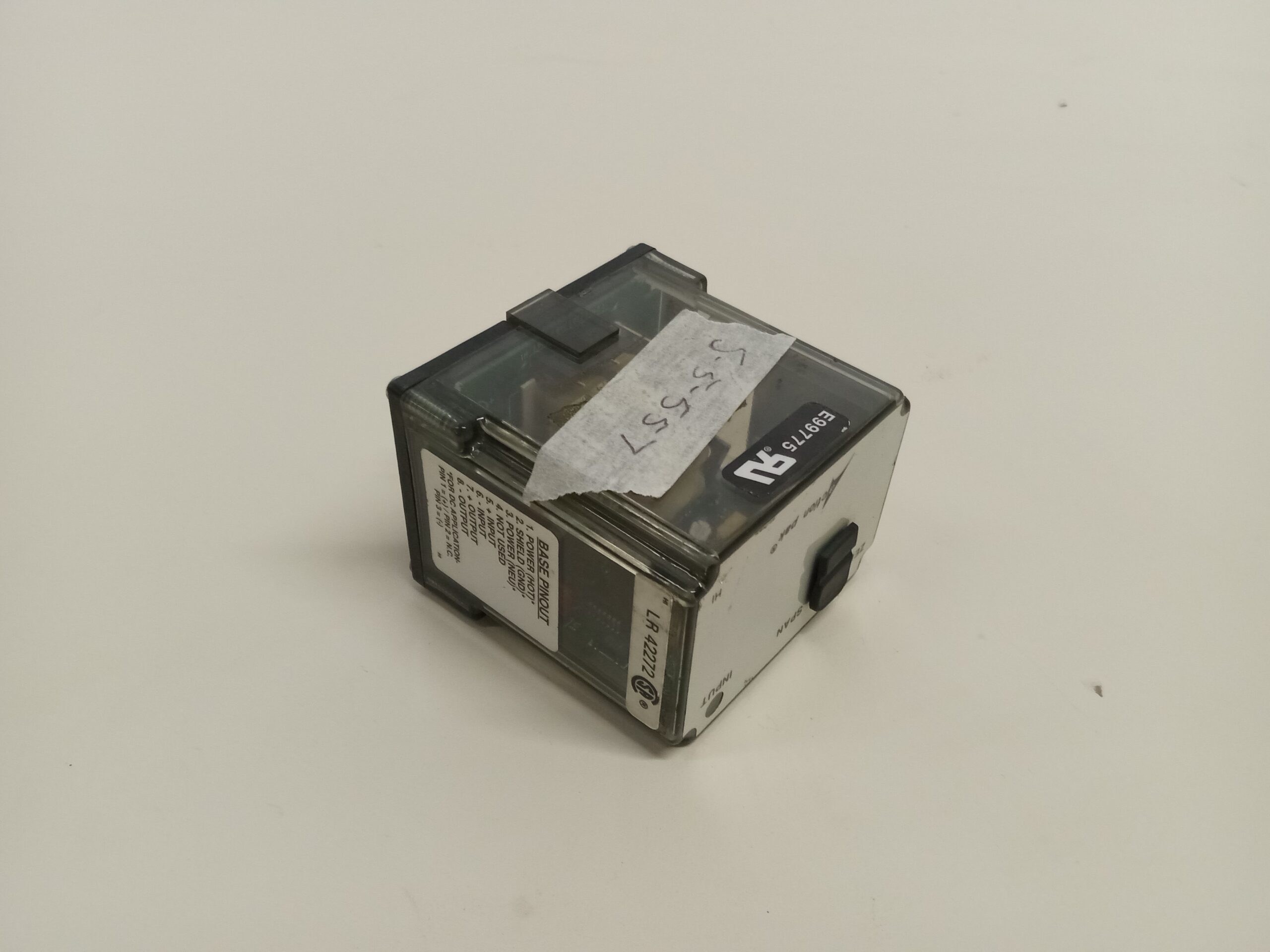

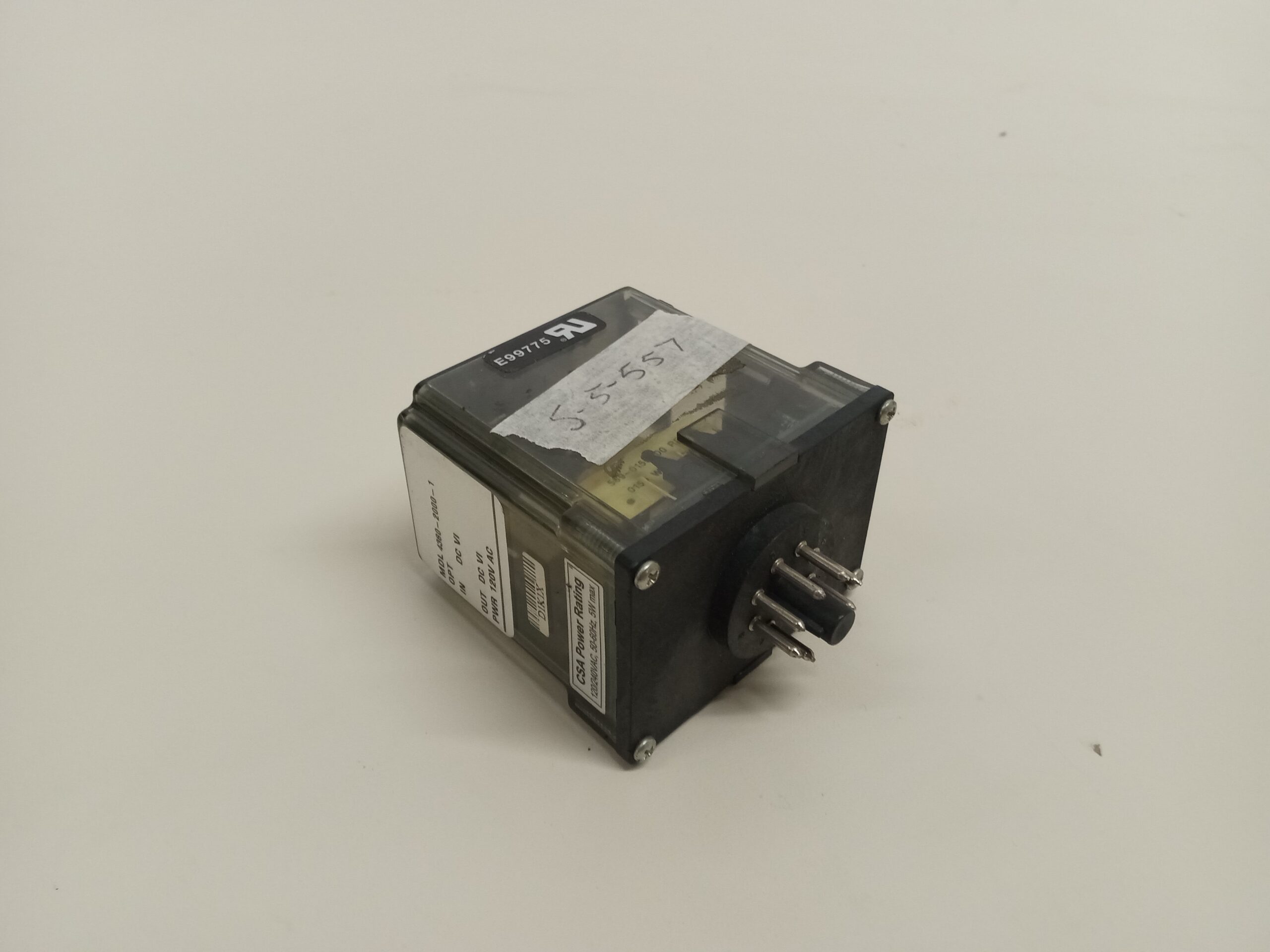

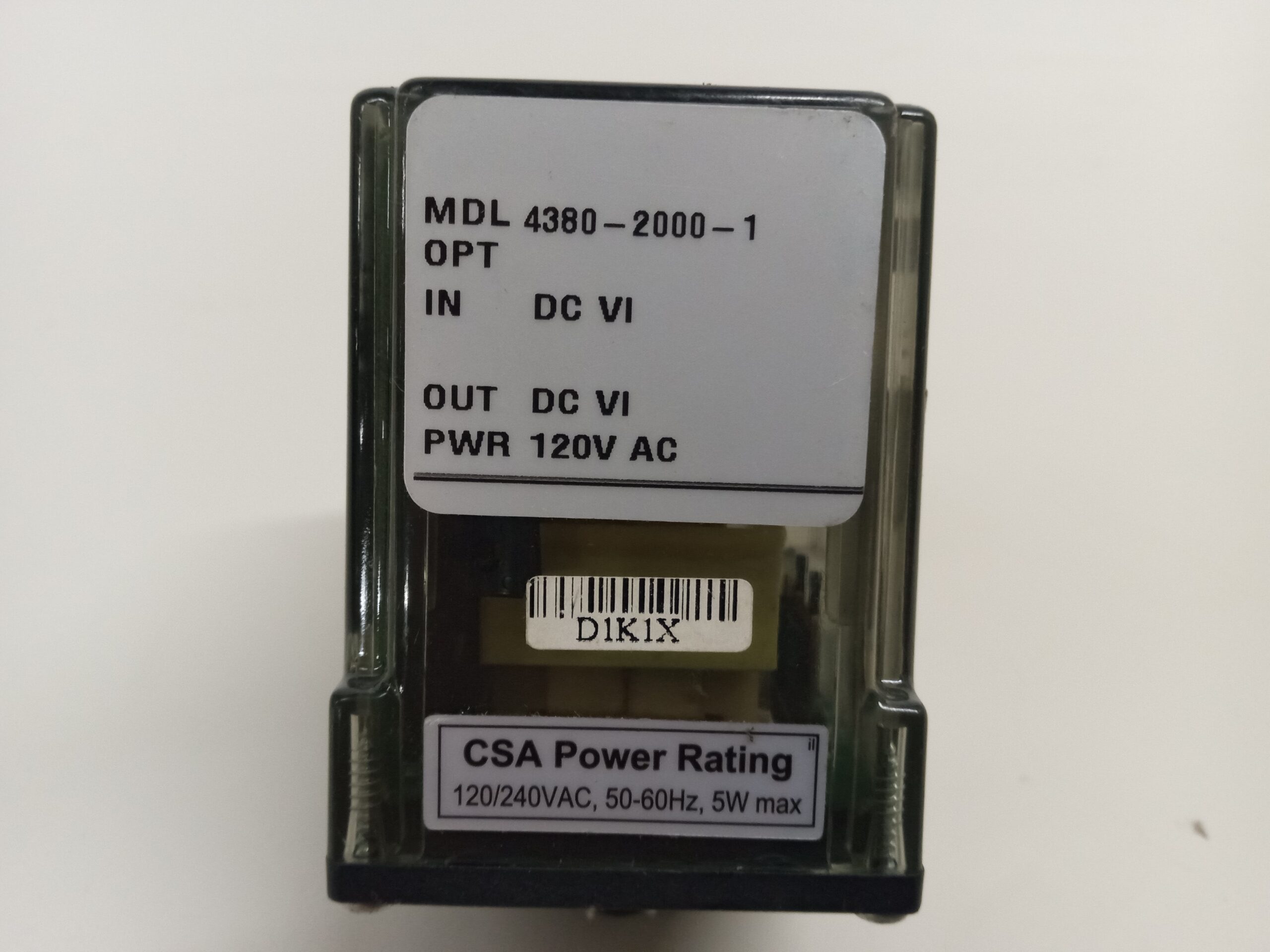

Action Instruments 4380-2000-1 Signal Conditioner

The Action Instruments 4380-2000-1 is a robust signal conditioner designed for industrial applications, capable of handling a wide range of input and output signals. It supports voltage inputs from 10mV to 100V and current inputs from 1mA to 100mA, with output options including 0-5V, 0-10V, and 4-20mA. This device features optical isolation up to 1500 VDC, helping to eliminate ground loops and enhance signal integrity. Its adjustable zero and span settings allow for easy configuration, making it suitable for diverse applications in industrial control systems. The compact design and plug-in installation facilitate quick replacements, ensuring reliable performance in demanding environments.

Specifications:

– Full Scale Range: 10 mV to 200 V (depending on series)
– Impedance: Greater than 100K ohms
– Output: Voltage: 0-5 V or 0-10 V, Current: 0-1 mA or 4-20 mA
– Response Time: 200 milliseconds
– Temperature Range: -15°C to 60°C (5°F to 140°F)
– Power Consumption: 3 W typical, 5 W maximum
