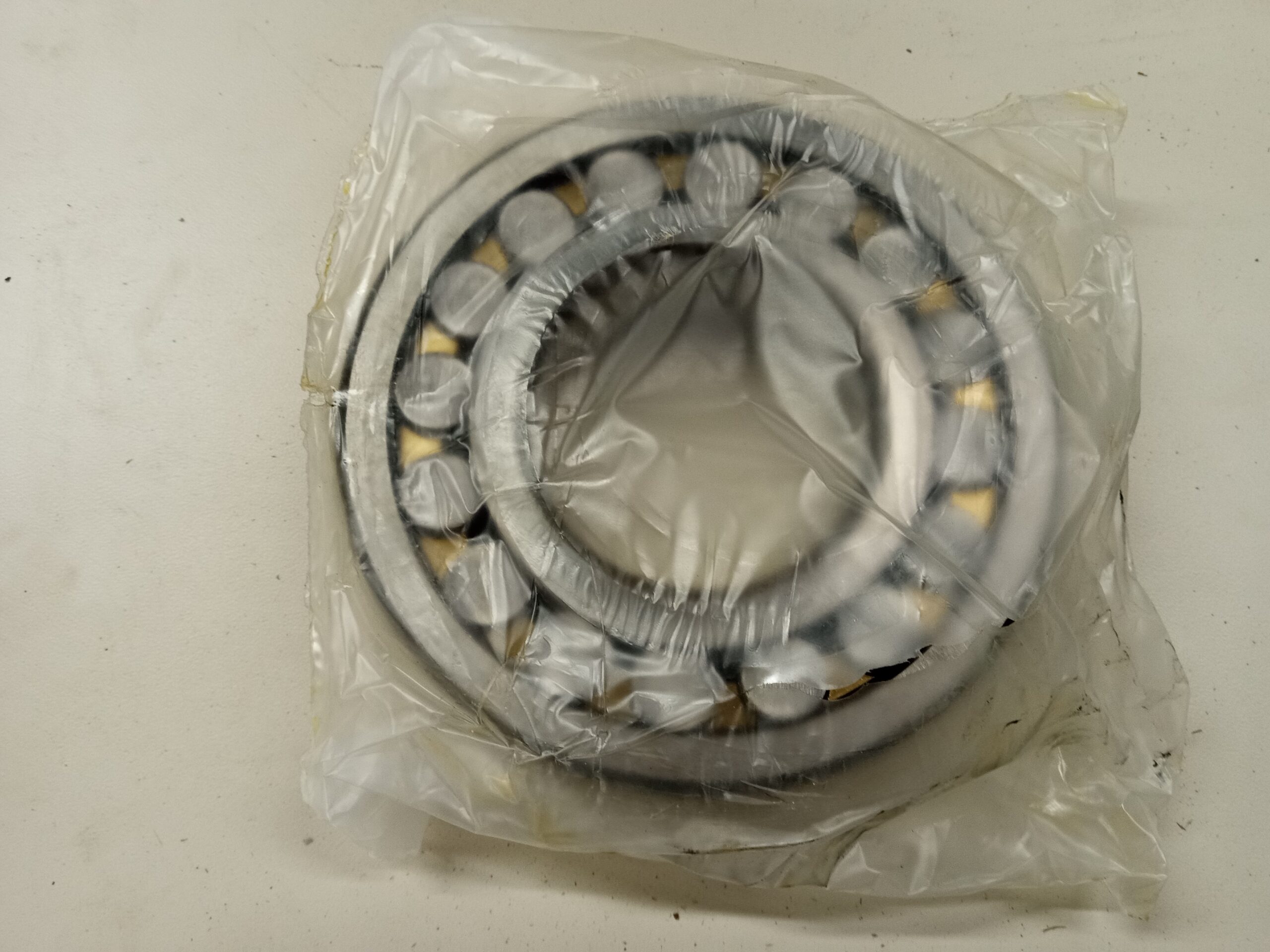

NTN 21313 E/c3 Spherical Roller Bearing 65x140x33

The BRG 21313 E/c3 is a high-capacity spherical roller bearing designed for demanding industrial applications. This bearing is designed for high load capacity and the ability to accommodate misalignment. Its C3 clearance makes it suitable for use in conditions where thermal expansion may occur, offering improved performance in challenging environments.

Specifications

• Bore Diameter: 65mm
• Outer Diameter: 140mm
• Width: 33mm
• Bearing Type: Spherical Roller Bearing
• Series: 213 (Extra Heavy)

Features

• Optimized Internal Design: Engineered for increased load capacity
• Flangeless Inner Ring: Allows for easier mounting and dismounting
• Dual Stamped Steel Cages: Provides improved roller guidance and reduces friction
• C3 Radial Clearance: Greater than standard clearance, suitable for applications with thermal expansion
• High Load Capacity: Dynamic radial load rating of 54,629 lbf and static radial load rating of 60,698 lbf
• Speed Rating: Maximum speed of 6,000 rpm
• Temperature Range: Operates from -30°C to 200°C
• Material: Chrome steel rings and rollers for durability
• Lubrication: Requires lubrication for optimal performance
