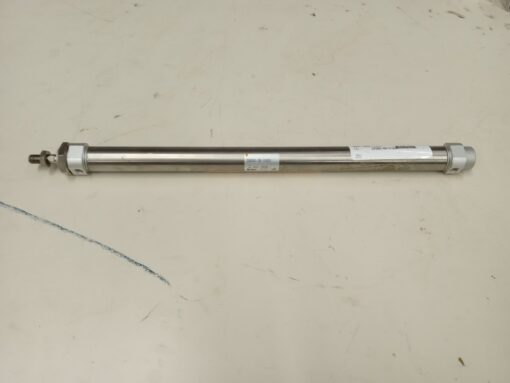

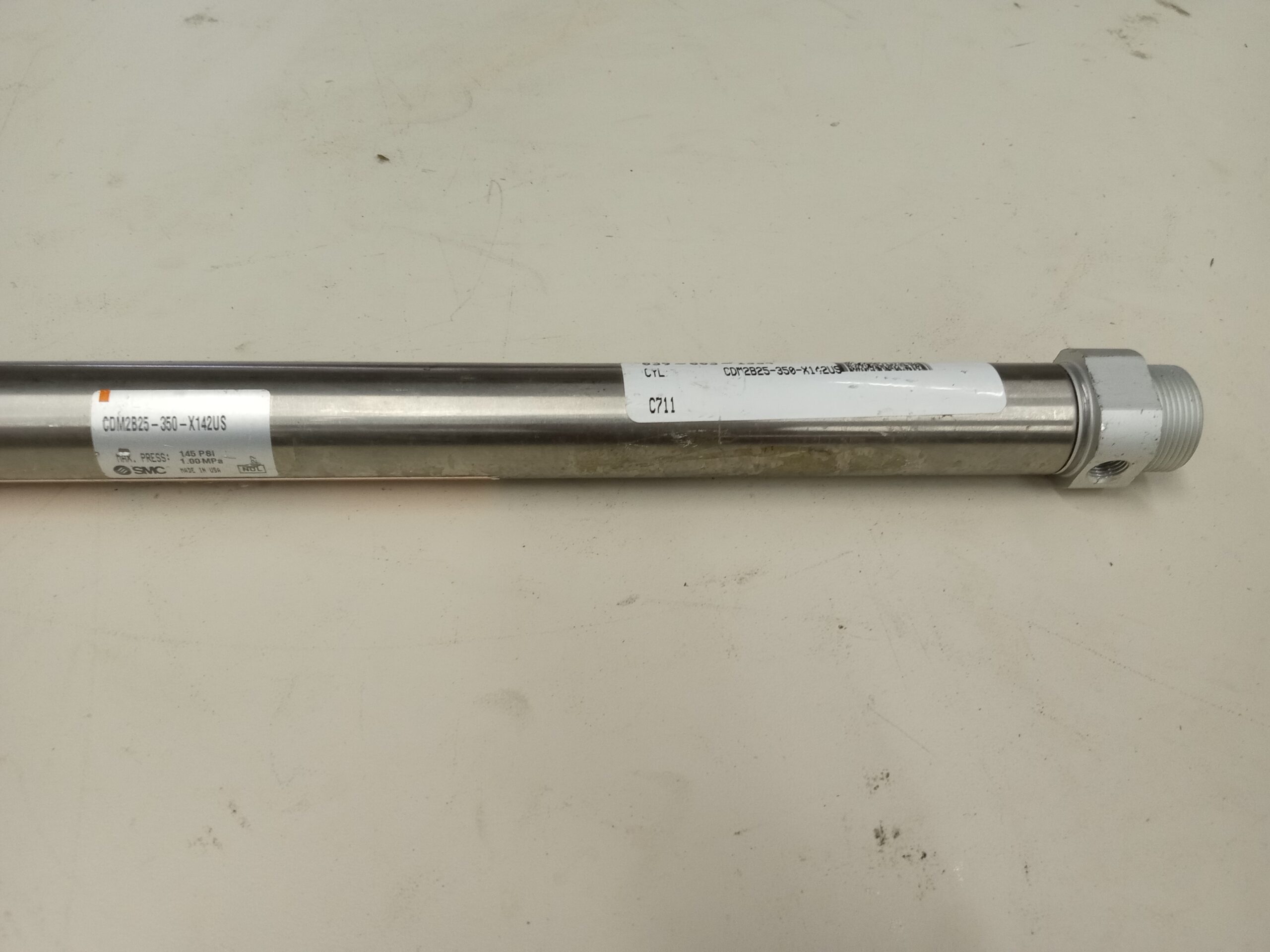

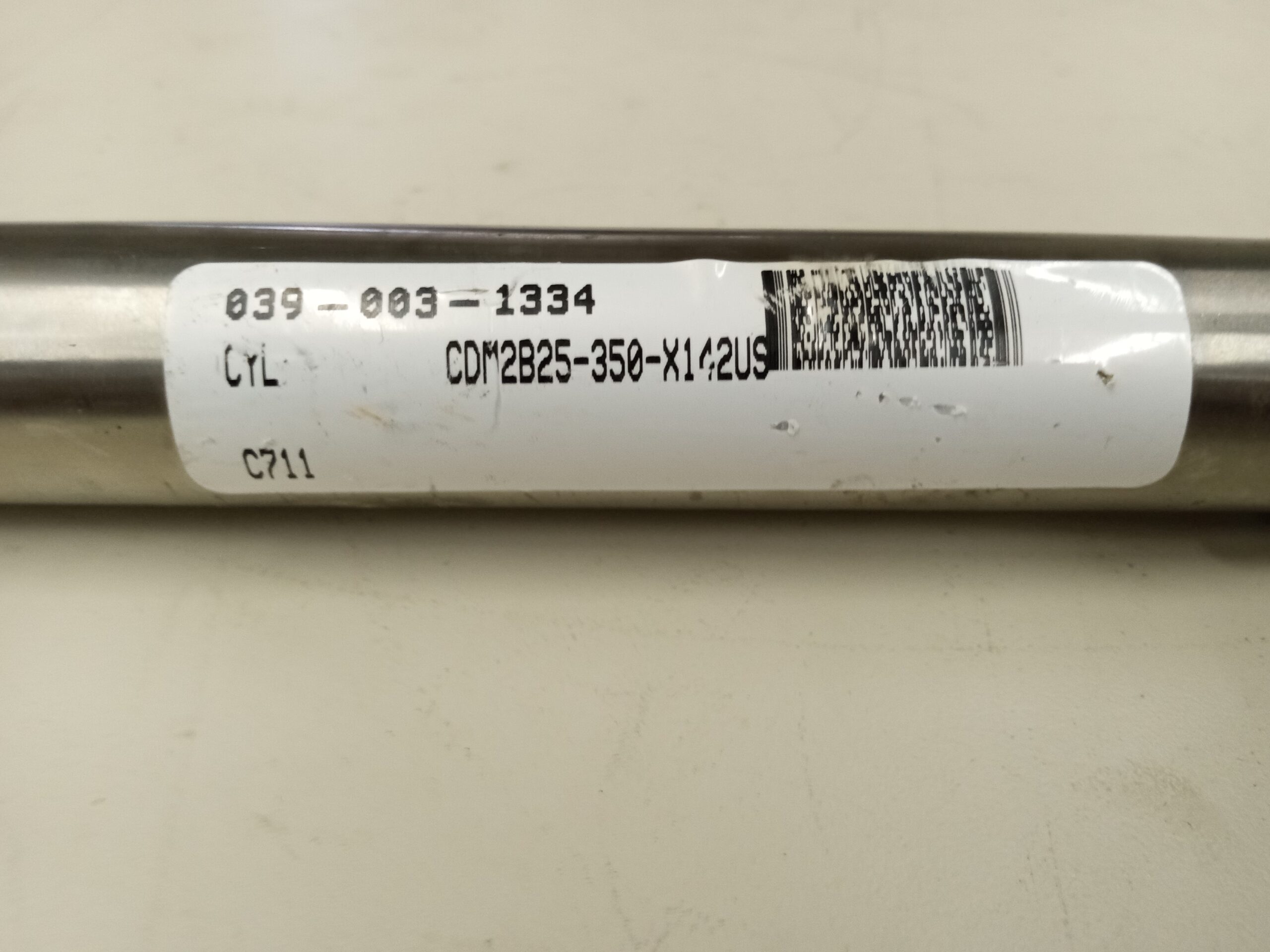

SMC CDM2B25-350-X142US Cylinder

The CDM2B25-350-X142US is a high-performance pneumatic cylinder from SMC Corporation, designed for a wide range of industrial applications. This double-acting cylinder features a bore size of 25mm and a stroke length of 350mm, making it ideal for tasks requiring reliable and efficient linear motion. With its built-in magnet for position sensing and rubber bumpers for impact absorption, the CDM2B series ensures durability and precision in operation.

Specifications

• Series: CDM2
• Bore Size: 25 mm
• Stroke Length: 350 mm
• Type: Double-acting cylinder with single rod
• Operating Pressure Range: 0.05 to 1.0 MPa (7.3 to 145 psi)
• Proof Pressure: 1.5 MPa (218 psi)
• Piston Speed Range: 50 to 750 mm/s
• Operating Temperature Range: -10°C to +70°C
• Mounting Type: Double-side bossed mounting (B)
• Port Connections: Rc1/8″ pneumatic threaded ports

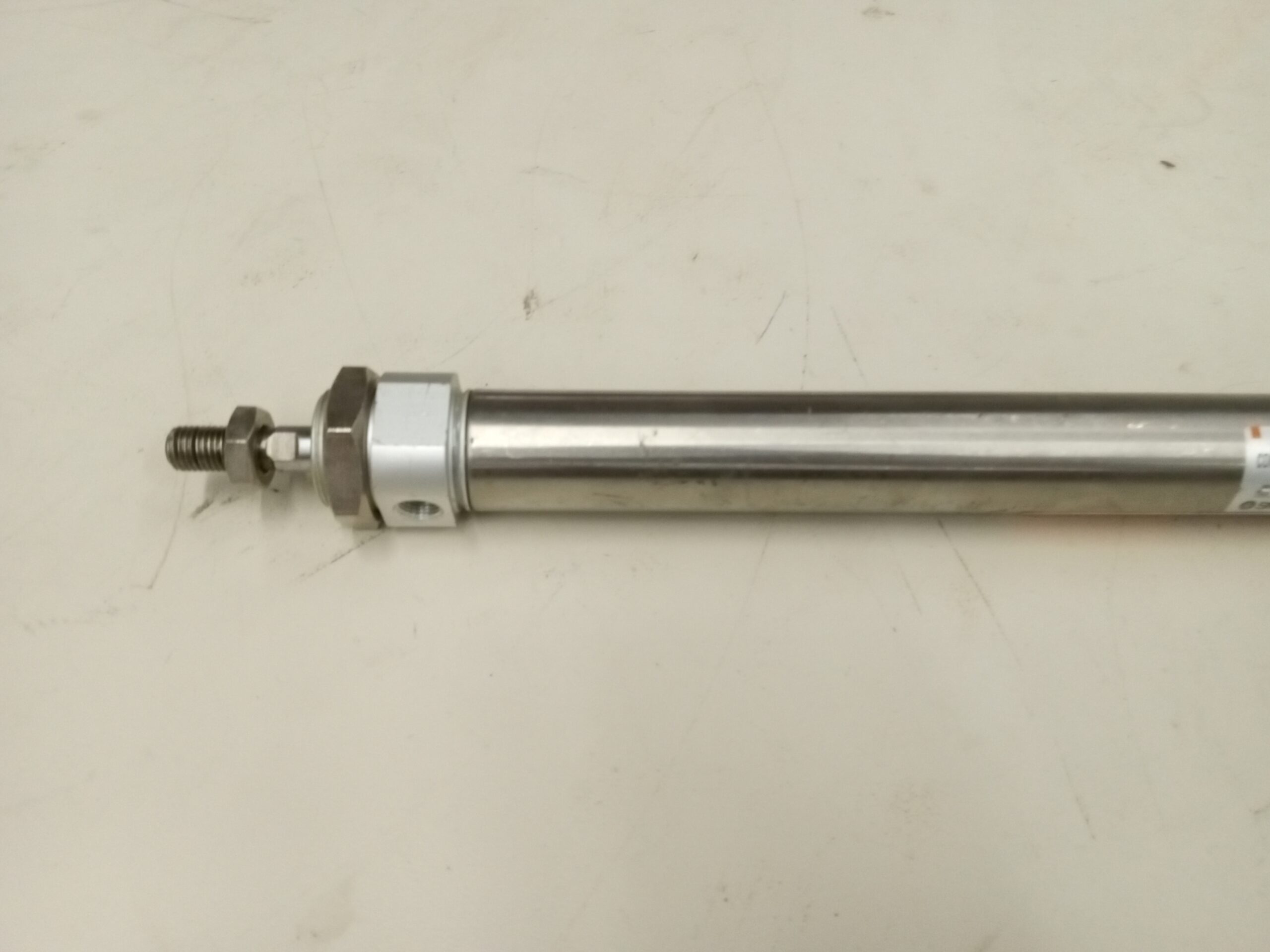

• Rod End: Male thread
• Features: Built-in magnet for position sensing, rubber bumpers for impact absorption
