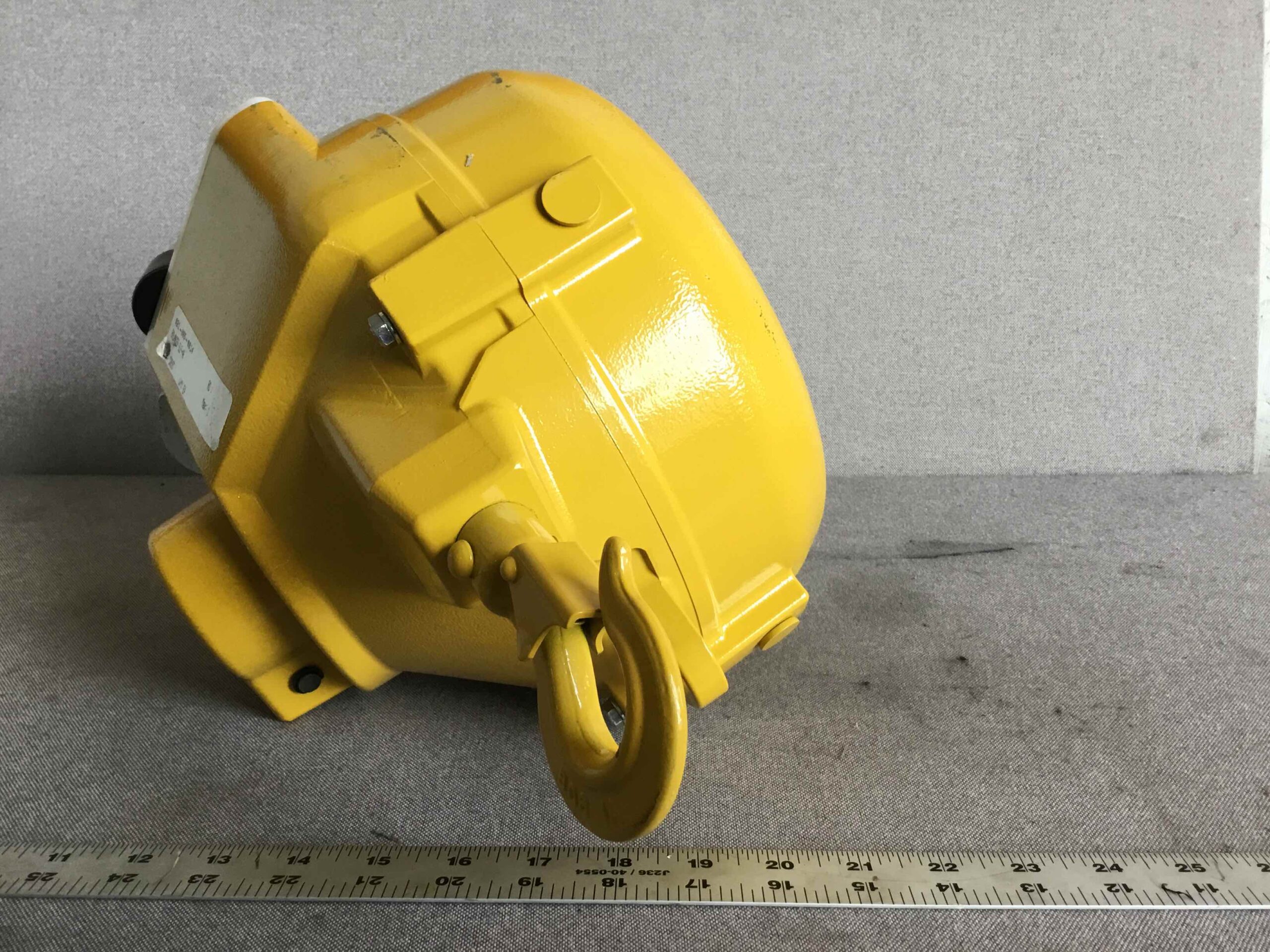

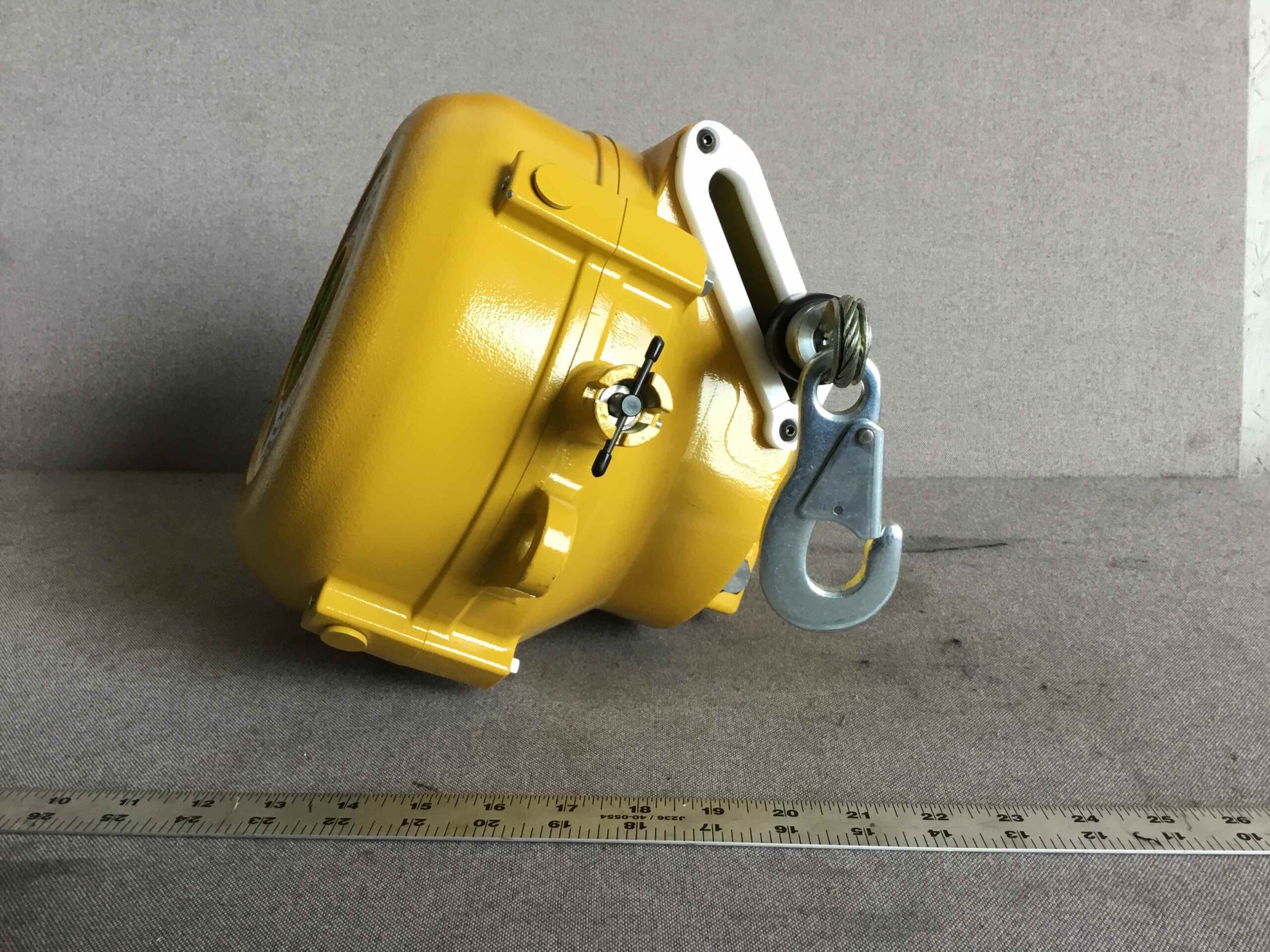

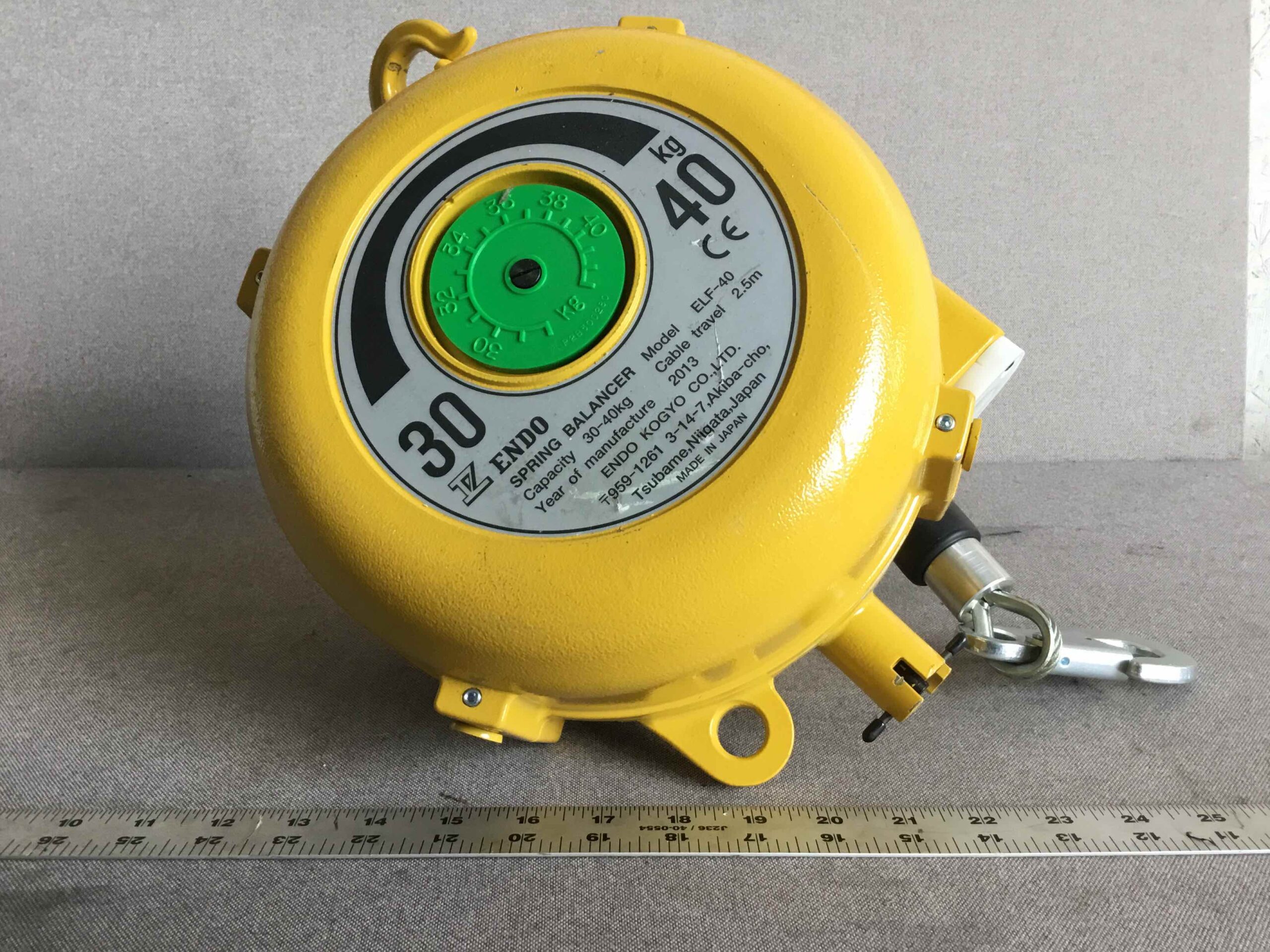

Endo Kogyo Spring Balancer 30-40kg ELF-40

Endo Kogyo was established in 1935 as a producer of metal cooking utensils. Until successfully transforming into a manufacturer of industrial machinery and equipment specializing in material handling equipment, power supplies, and environmental machines. The spring balancers are now used by automobile manufacturers in more than 30 countries around the world to safely suspend welding equipment and other tools and jigs.

Tool Balancers support heavy tool loads with cable tension equal to the weight of the suspended tools, making them seem virtually weightless.  Spring Balancers provide constant tension on the cable, accomplished with a spring motor and a tapered drum.  The balancer extends or retracts the support cable to follow the tool’s movements. The assembler can reposition the tool, while experiencing comfortable operation and less fatigue.

Endo Spring Balancer 30-40kg ELF-40 is used for suspension of electric tools, jigs, and work materials. Suspension of operational robot cables and hoses. It does not require electric or air power and it is safe to work with. Long stroke type.

• Endo
• Endo Kogyo
• ELF-40
• ELF40
• Spring Balancer
• Tool Balancer
• Load Balancer
• 30-40kg (66-88lbs) capacity
• Rope Diameter 4.76mm
• Stroke: 2.5M
• Overall length: 521mm
• Carbon steel wire rope materials
