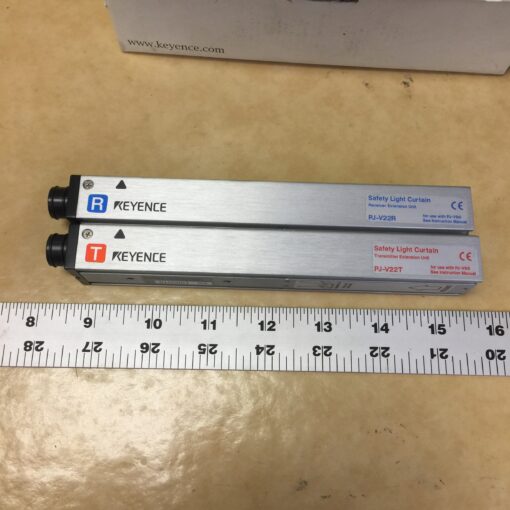

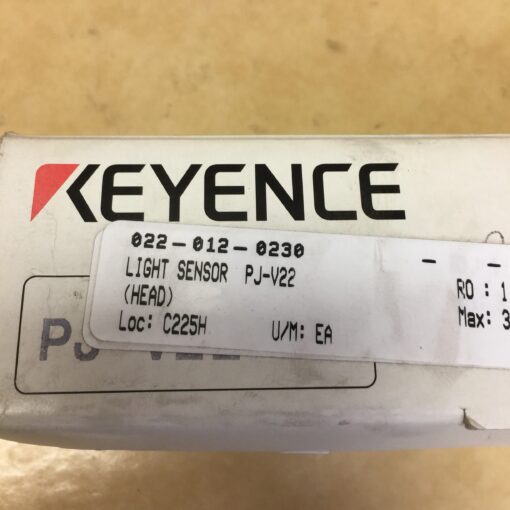

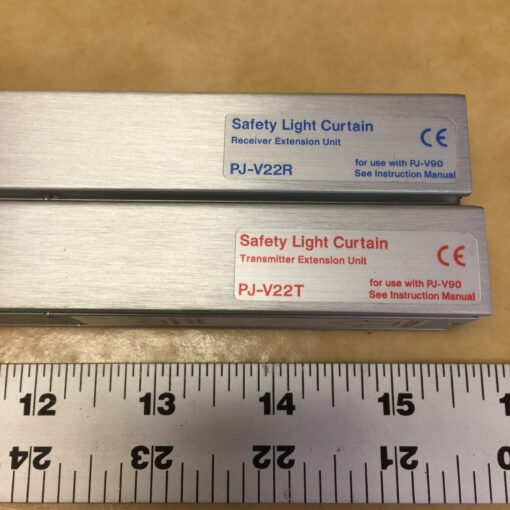

Keyence Light Curtain PJ-V22

Keyence Corporation was founded in 1974 in Osaka, Japan and specializes in factory automation. Ranging in everything from photoelectric and proximity sensors to measuring instruments for inspection lines and high precision microscopes used in institutions. Keyence not only manufacturers high end parts but specializes in product planning and development and does not manufacture the final products. These products are produced at contract qualifying manufacturing companies. Keyence is a direct sales organization that develops automation sensors, vision systems, barcode readers, laser markers, measuring instruments, and digital microscopes.

Safety light curtain are devices used to safeguard people in the vicinity of moving machinery such as presses, winders, and palletizers. These opto-electronic devices may be used as an alternative to mechanical barriers and other forms of traditional machine guarding. The operability and efficiency of machinery improves greatly with a safety area sensor as opposed to the traditional physical guard or barrier. This allows for easier operability and maintainability of the equipment.

Keyence Light Curtain PJ-V22:

• Keyence
• PJ-V22
• PJV22
• Light Curtain
• Area Sensor
• Extension unit B
• Combination controller PJ-V90, PJ-V91
• Beam axis spacing: 20mm
• Detection Distance: 7m
• Detection area: 140mm (8 optical axes) to 1,260mm (64 optical axes)
• Infrared LED
• Case: aluminium
• Lens Cover: polyarylate
