Leeson C42P17FZ1B Motor

The Leeson C42P17FZ1B is a compact and versatile AC gearmotor designed for continuous duty applications. It features a TEFC (Totally Enclosed Fan Cooled) enclosure, making it suitable for environments where protection from dust and moisture is necessary. With an input of 0.16 horsepower (0.12 kW) and an output of 29 RPM, this gearmotor provides significant speed reduction and high torque output of 270 in/lb, making it ideal for applications requiring low speed and high torque.

The motor operates on dual voltage (115/230V) at 60 Hz, offering flexibility in power supply options. Its P42Y NEMA frame ensures standardized mounting compatibility. Weighing 29 lbs, it’s relatively lightweight for its capabilities. The gearmotor is designed to operate in ambient temperatures up to 40°C, suitable for various industrial environments. Without built-in thermal protection, it may require external monitoring in demanding applications.

This gearmotor is well-suited for applications in material handling, packaging machinery, conveyor systems, and other industrial processes where precise speed control and high torque at low speeds are required.

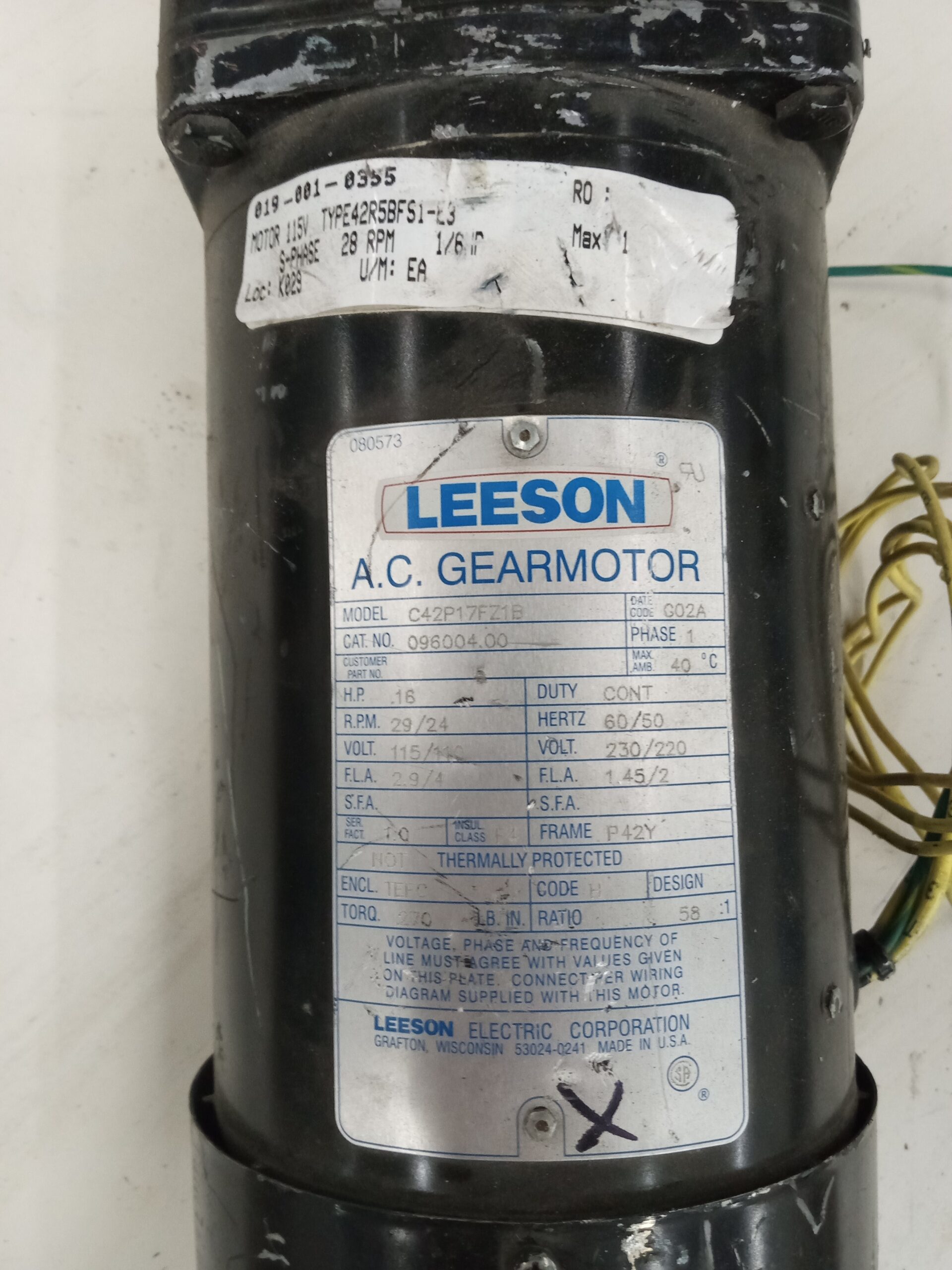

Key Specifications

• Ambient Temperature Range: 40 °C
• Drive End Bearing Size: 6203
• Duty Condition Type: Continuous Duty
• Enclosure Abbreviation: TEFC
• Full Load Current: 4.00 / 2.00 A
• Full Load Torque: 270 in/lb
• Input Horsepower: 0.16 hp
• KVA Code: H
• Motor Supply Voltage: 115/230 V
• NEMA Frame: P42Y
• Opposite Drive End Bearing Size: 6201-13
• Output RPM: 29.0 rpm
• Thermal Protection: None
• Volts @ Frequency: 115/230 V @ 60 Hz
• kW: 0.12 kW
