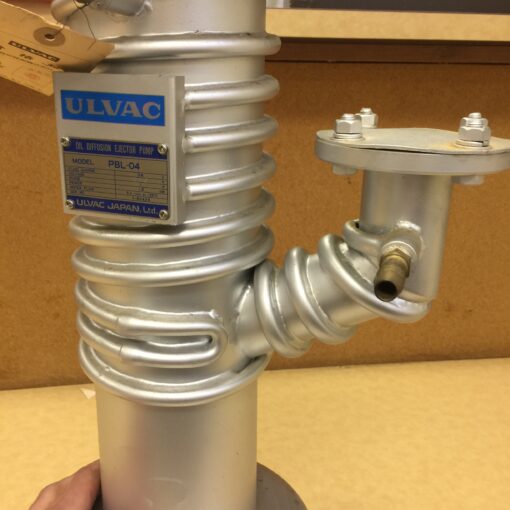

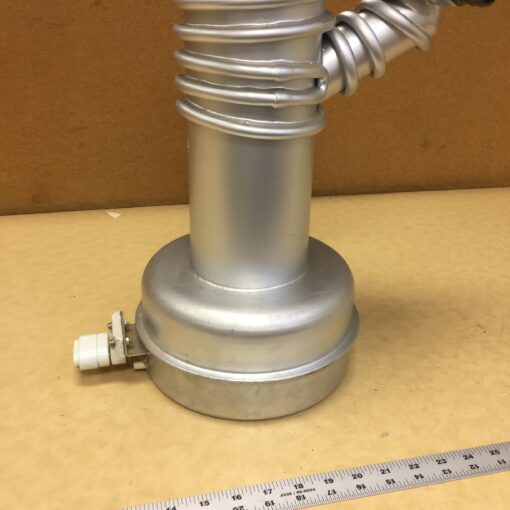

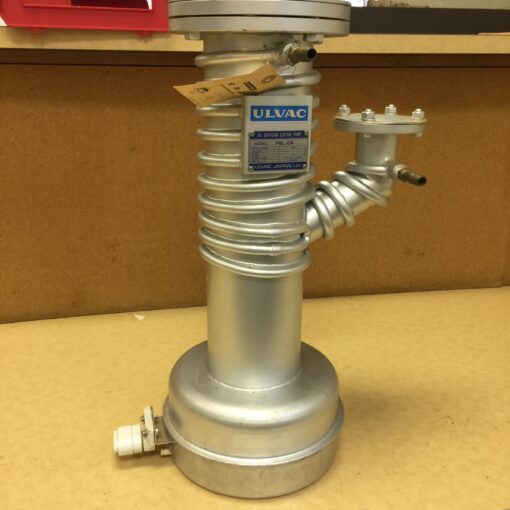

Ulvac Oil Diffusion Pump PBL-04

$2,800.00

1 in stock

Category: Tags: , ,

ULVAC, Inc. manufactures vacuum devices for industries such as semiconductor, electronics, chemical, pharmaceutical and food. The Company’s products include pumps, valves, gas analyzers, leak detectors, and surface profile measurement. ULVAC, Inc., is a Japanese company, affiliated with Matsushita Electric Industrial Company, that through its three dozen subsidiaries develops, manufactures, sells, and services production systems and products that rely on vacuum-based processing chambers.

ULVAC’s oil diffusion ejector pumps are generally used in industrial processes to provide high pumping speed. They are particularly well-suited for use in metallurgy, plastic coating and chemical manufacturing, where large quantities of gas have to be pumped away as quickly as possible. These pumps have maximum pumping speed at 10-1 Pa level. Stainless steel is used for the pump bodies of Model PBL-02 and PBL-04 in order to minimize outgassing of the pumps, eliminate corrosion and to ensure a long operating lifetime of the pump. The PBL Series are particularly well-suited for the use as an intermediate pump between an oil rotary pump, a mechanical booster pump and oil diffusion pump. The larger capacity pumps (PBL-06 – PBL-20) have the heaters directly immersed in the operating fluid for maximum thermal efficiency.

ULVAC Oil Diffusion Pump PBL-04. Check out the specs on the pump here.

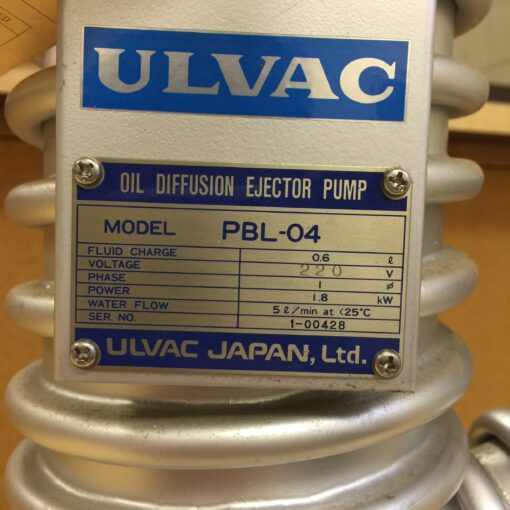

• ULVAC
• PBL-04
• PBL04
• Oil diffusion pump
• Pumping speed 200 L/sec
• 30 minute heat up time
• Oil capacity 0.6L
• Water Connection Rc 1/4″x1
• 1.8 kW pump power
• Coiled heater element

Weight45 lbs
Location

CACA

Brand

Ulvac

Product Type

Pumps

Model

PBL-04
